Featured What is this tool?

Discussion in 'Tools' started by Cobra.nut, Jun 21, 2019.

  1. Cobra.nut

    Cobra.nut New Member

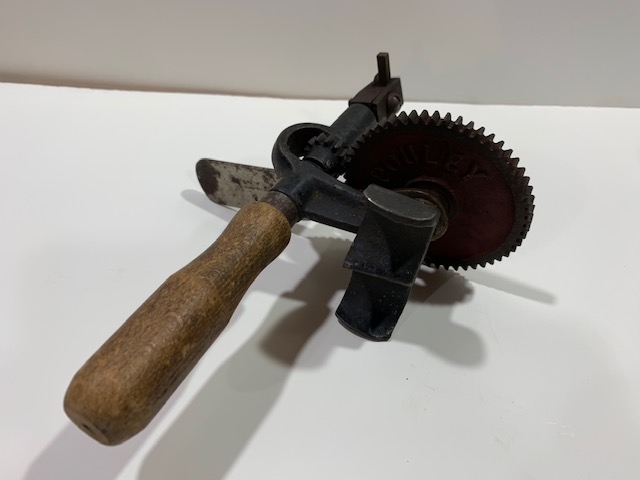

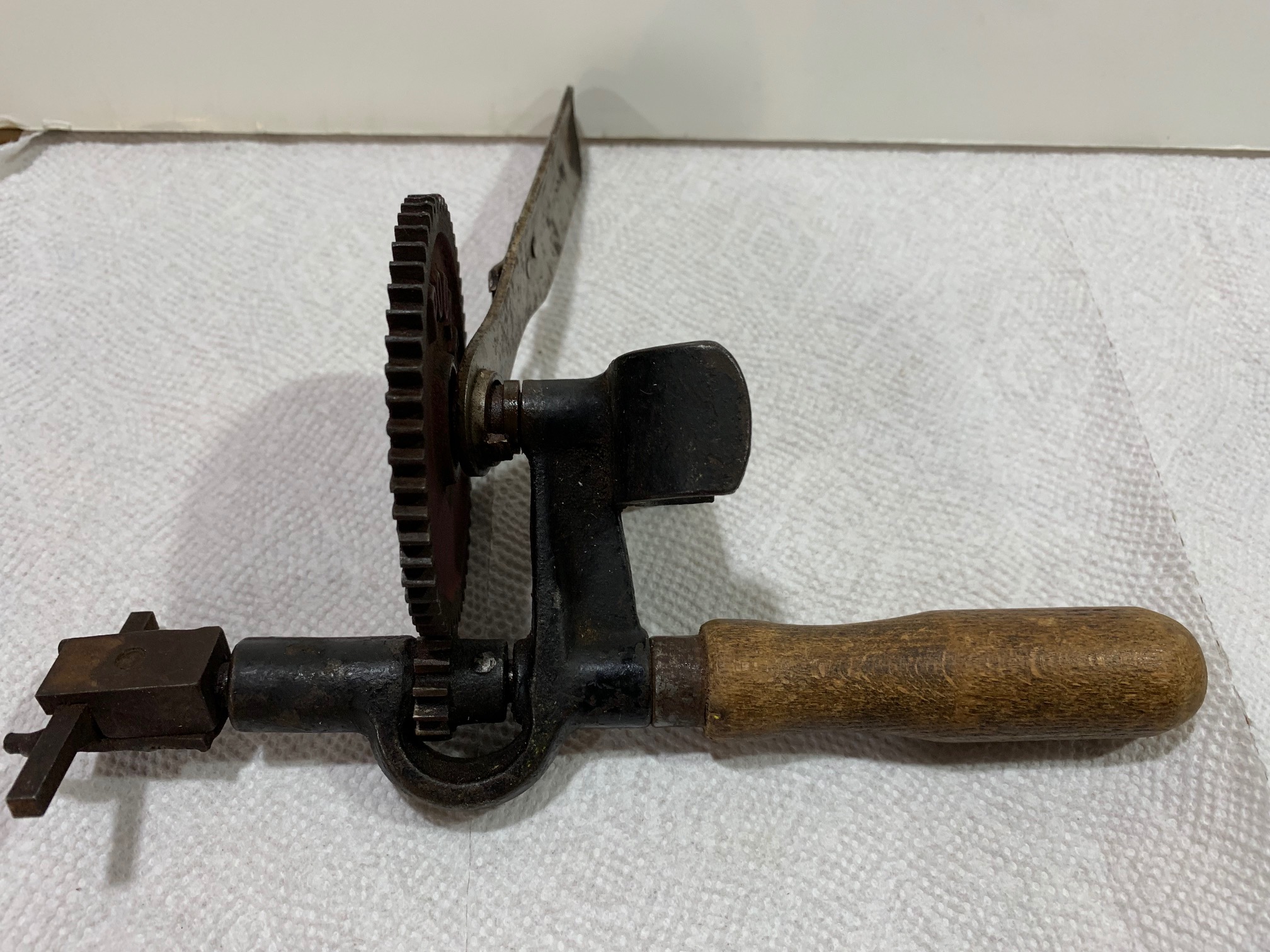

    My father in law was given this tool in the 1940's. It was an old tool that his uncle and fellow carpenter had. He has never seen it in use and cannot understand what it is for. It seems to be manufactured and purpose built. It has the name "Pouley" cast into the gear, however this name has not provided any help.
    Your thoughts?

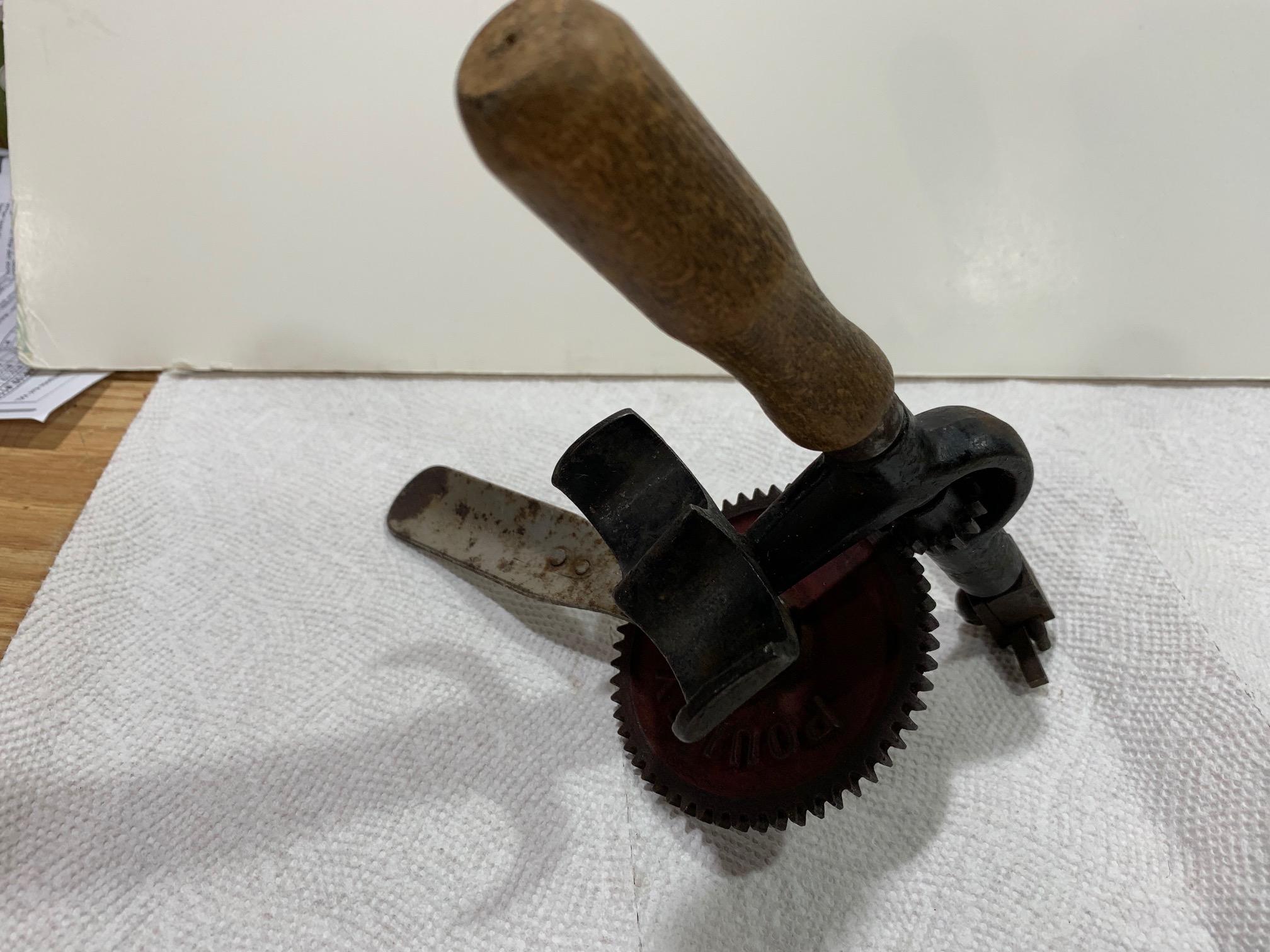

    IMG_1036.jpg IMG_1033.jpg IMG_1036.jpg IMG_1033.jpg

    komokwa, Michael77 and Bronwen like this.
  2. Michael77

    Michael77 Well-Known Member

    Can you provide more pictures and different angles?

  3. Jivvy

    Jivvy the research is my favorite

    Plus, dimensions are always helpful.

    Christmasjoy, kyratango and Michael77 like this.
  4. Steersman

    Steersman Well-Known Member

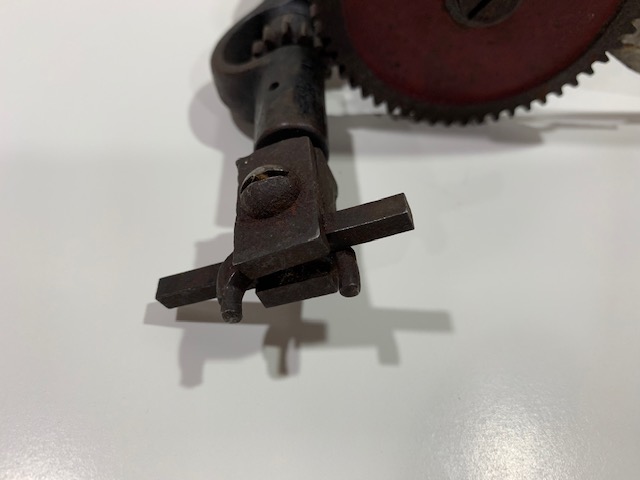

    Need to see the business end close-up. It looks like an adjustable cutter of some kind made for close-in, perhaps tight corner, work.

    Christmasjoy, Shwikman and Michael77 like this.
  5. Cobra.nut

    Cobra.nut New Member

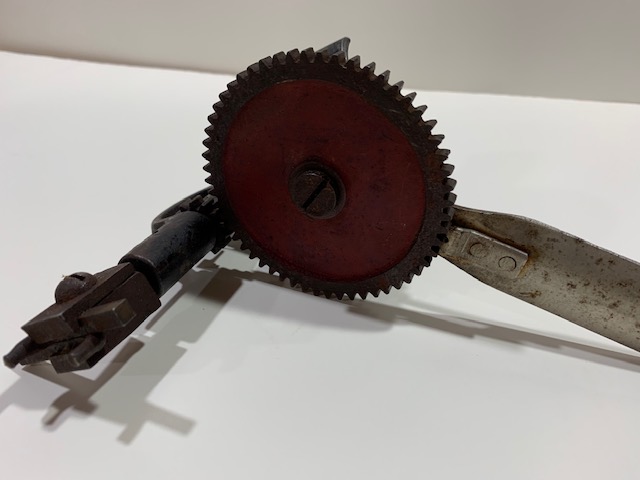

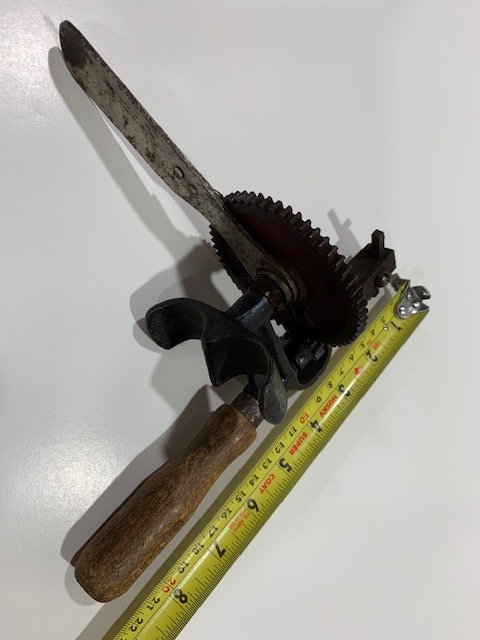

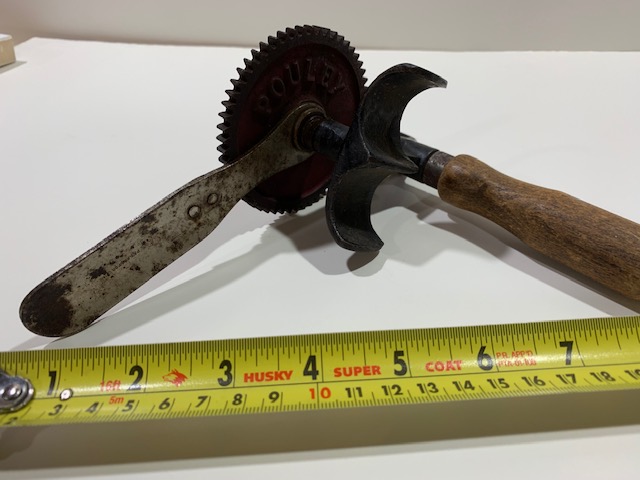

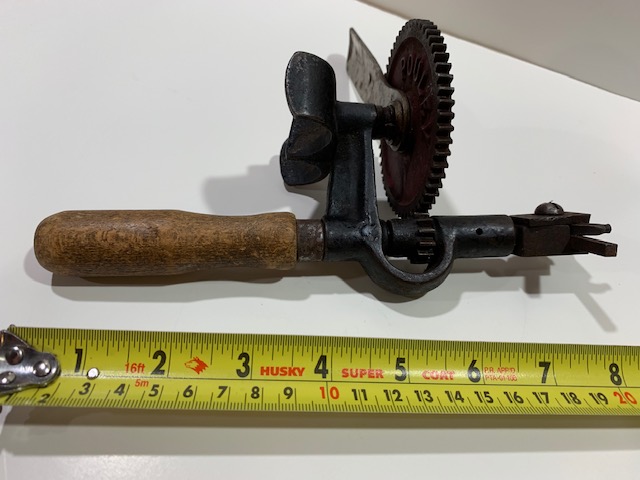

    Thank you to everyone for your help thus far. I hope these additional pictures and dimensions help. My father in law is 94 and has challenged me with identifying this tool.







    moreotherstuff, judy and Michael77 like this.
  6. Bronwen

    Bronwen Well-Known Member

    Is the silvery piece I'm going to call the spatula, that sticks off to the side, attached to the larger gear, so that the 2 go round together? Or are they independent of each other? Could the 'spatula' stay in place while the gears turn? It has been suggested to me that the purpose was to scribe a circle onto something as part of a manufacturing process that required holes made in a uniform way. Question is how motion was imparted to gears.

    Is it something FIL used in his lifetime? Inherited? Bought as a whatsis in a junk shop?

  7. Jivvy

    Jivvy the research is my favorite

  8. Bronwen

    Bronwen Well-Known Member

    Jivvy Mervigliosa does it again!

  9. Cobra.nut

    Cobra.nut New Member

    Awesome job!! I can’t thank you enough. I have searched for months without a clue.

  10. komokwa

    komokwa The Truth is out there...!

    the talent here is awesome....................:happy::happy::happy:

    Michael77, kyratango and Jivvy like this.
  11. Figtree3

    Figtree3 What would you do if you weren't afraid?

  12. Firemandk

    Firemandk Well-Known Member

    I knew what it was right away..but then I have a 1926 Model T too...... neat tool there , a lot more "complex" than most of them .

    Michael77, Jivvy and anundverkaufen like this.
