Help with Japanese tool instructions!

Discussion in 'Tools' started by springfld.arsenal, Nov 19, 2016.

  1. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

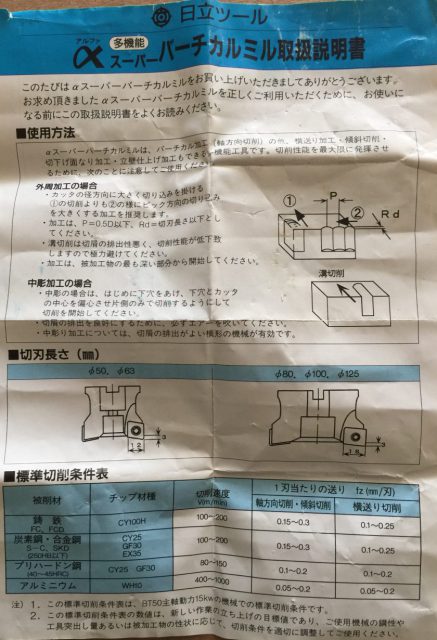

    Here's a pic of the tech data sheet that came with an Hitachi milling cutter I want to use. It needs three identical tungsten carbide "inserts" aka cutters, blades. There are thousands of different types of these inserts, each designated by a 4-letter code. I know only the first letter of the code for the proper insert, "c", which specifies an insert with an 80-degree rhombic shape.

    I'm wondering if the 4-digit code is spelled out somewhere in the text on this page? The 50mm model I have is pictured in the lower left drawing.

    Anyone see a 4-letter code beginning with "C" in the text?

    [​IMG]

    KingofThings likes this.
  2. terry5732

    terry5732 Well-Known Member

    I think the C is likely for carbide. All that matters is the dimensions for your slot. Get the four sided ones so you can rotate to a fresh edge when they're dulled.

  3. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

  4. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

  5. terry5732

    terry5732 Well-Known Member

    Never seen that type before. So you actually need a hole in the center of the cutters. That's messed up.

  6. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

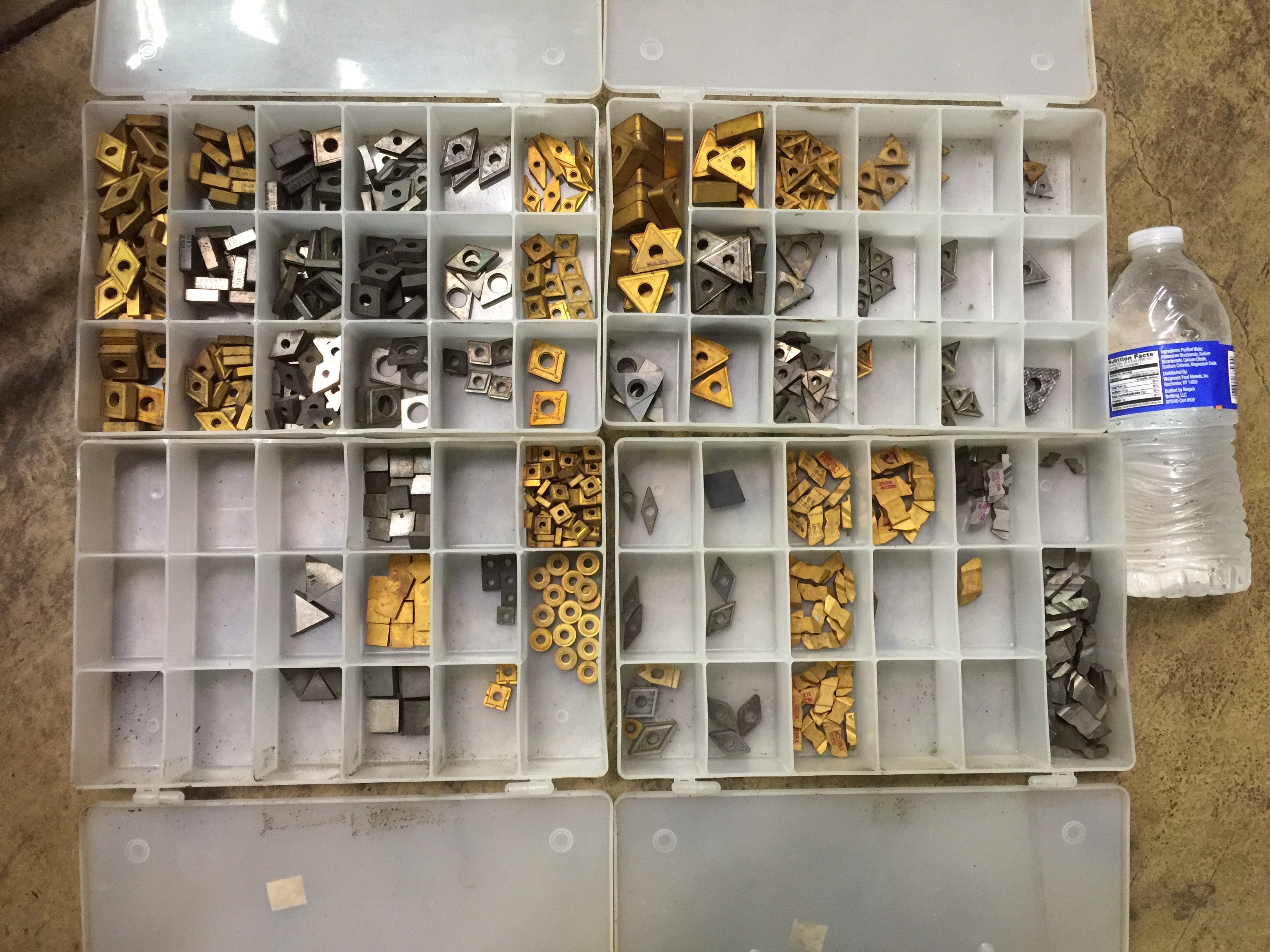

    Lots of 'em are like that, here's our collection of orphaned inserts, ones that got separated from their orig packaging with the important info on it.
