Help with dismantling 1950’s Reclining Chair

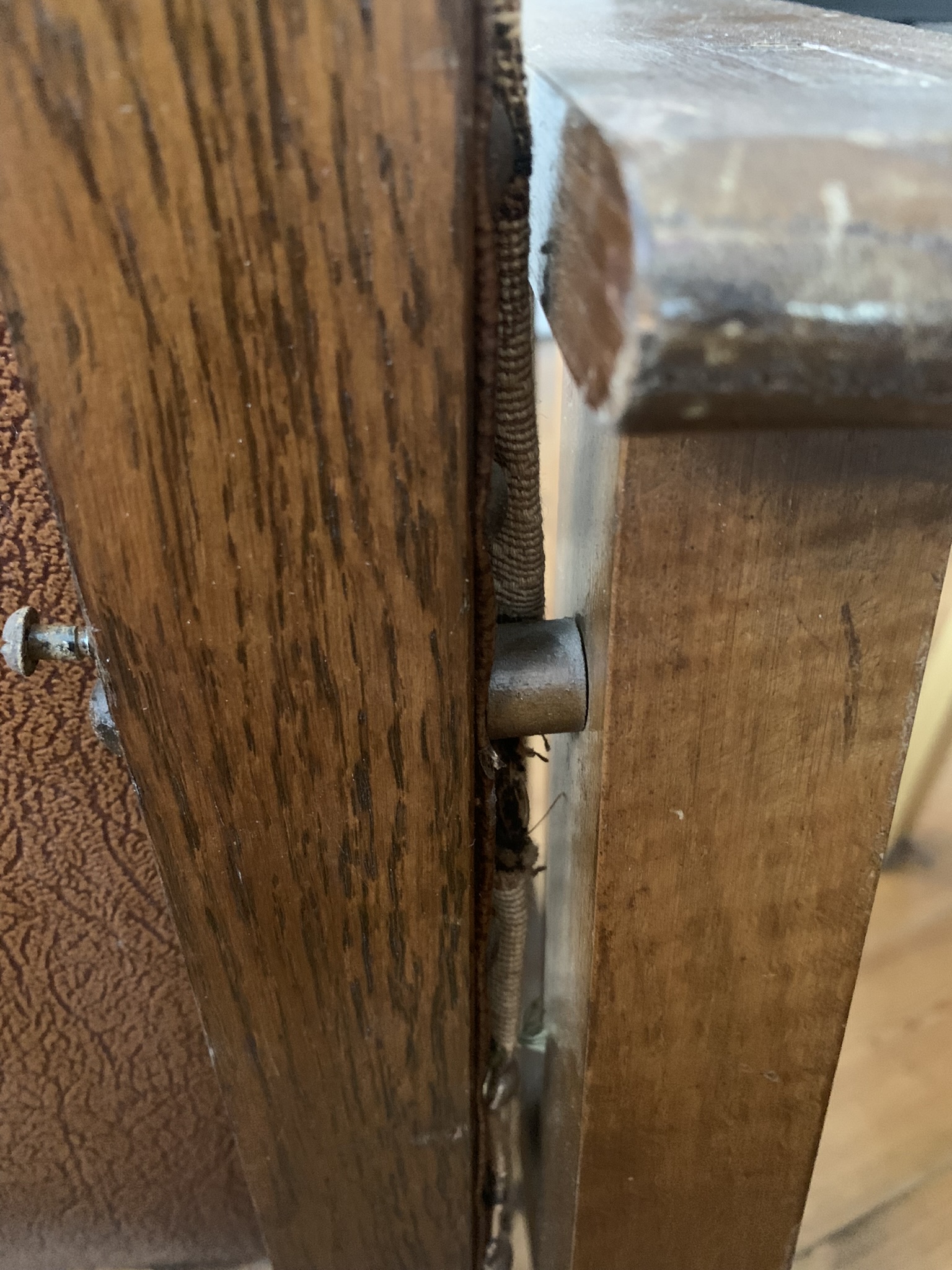

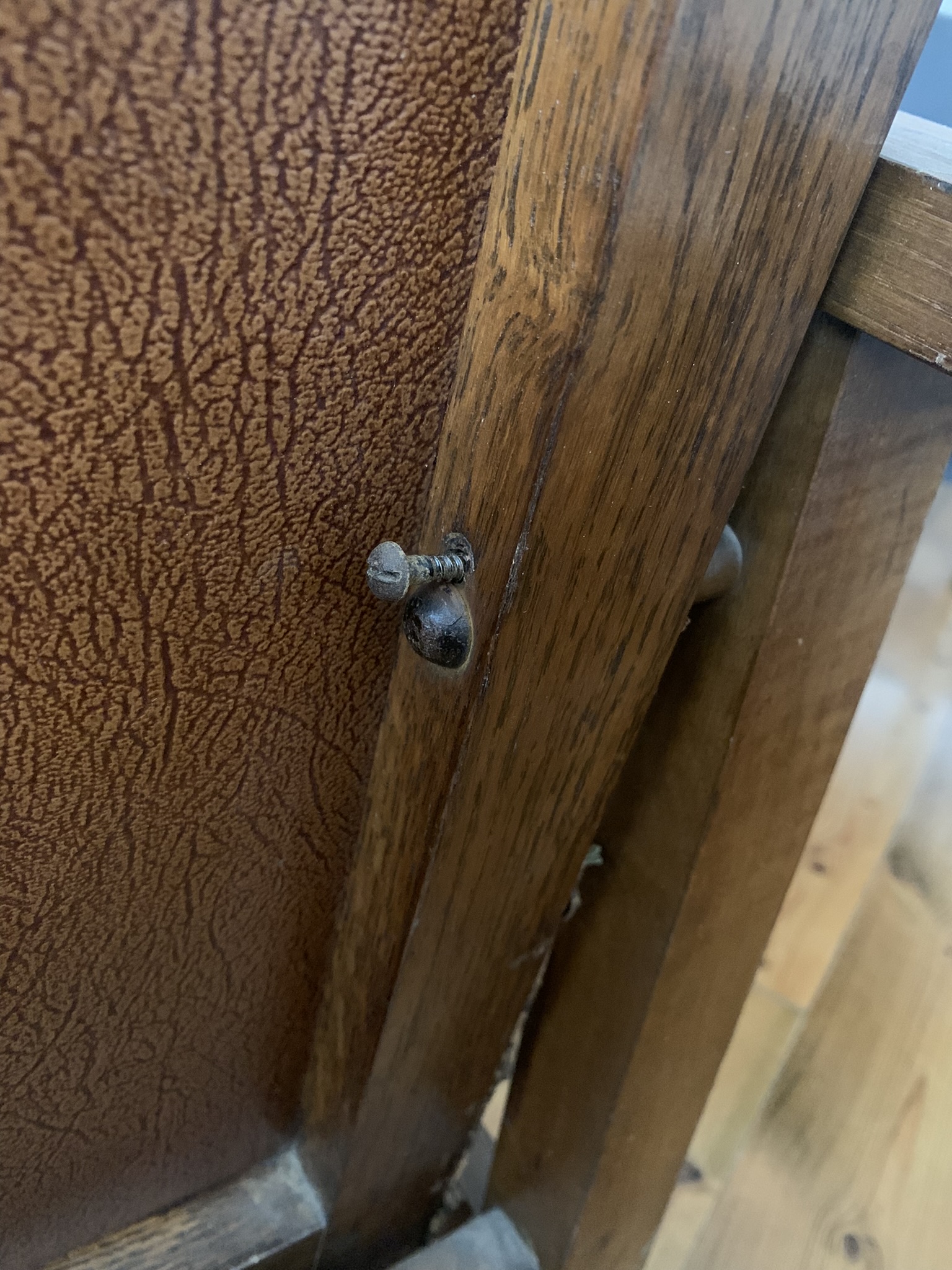

Hi All, need advise on dismantling a 1950’s reclining armchair, see photos where the back pivots on the frame, the little screws didn’t seem to do anything and the bolt like bit is just rounded so doesn’t look like it unscrews, do you think the frame was constructed on to the back or is there something else I could try?

Thanks.paul



That bolt looks like a rivet. I'm not sure you'll be able to get the back off without damaging it unfortunately.

If those bolts screw into the frame, you might be able to notch them and unscrew with a large flat head. Alternatively, you could file off a couple of the edges and turn with a wrench.

Worst comes to worst, I suppose you could cut off the bolts close to the back's framing. Then you could try to turn out the nubs with a wrench. They may be pressed into the wood. No idea.



What is your purpose for dismantling?



Hi Bakersgma, I want to strip & refinish the woodwork and get the seat & back upholstered.
Thanks. Paul



Ok, you need to decide whether that “bolt head” is actually made of wood, because I bet it is. Wood plugs like this were widely used in the mid 20th century, used to cover up heads of bolts. If you pull out the wood plug - use a knife if you want to salvage it, though if the glue won’t give it doesn’t matter if you destroy it, it is decorative only. Once exposed find the correct screwdriver or wrench to unscrew it.
